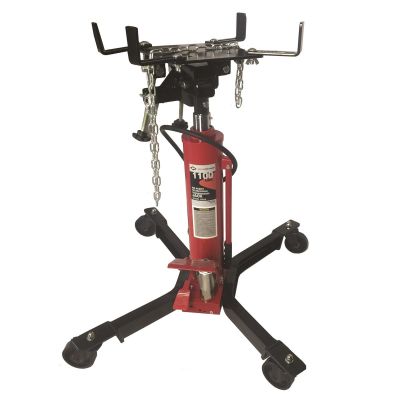

American Forge & Foundry AFF - Transmission Jack - Hydraulic - Telescopic - Two Stage - 1,100 Lbs. Capacity - 37" Min H to 78" High H - Manual Foot Pedal / Air Assist - Double Pump Quick Lift

Features and Benefits:

• Color: Red/Black
• Unit Type: Telescopic Transmission Jack
• Power Type: Air/Hydraulic
• Operation Type: Air/Manual
• Ram Stages: 2
• Capacity: 1,100 Lbs.
• Minimum Height: 37"
• Maximum Height: 78"
• Front Tilt: 28°
• Rear Tilt: 49°
• Head Width: 8” x 8” to 14” x 14”
• Base Width: 28” x 32”
• Working Air Pressure: 90 - 150 PSI
• Warranty: 1 Year
• Weight: 170 Lbs.
• Certification: ASME/Pase 2019
• Two stage telescopic ram designed for medium duty transmissions, transfer cases, and differentials.
• Double pump hydraulic system for quick lift operation.
• Air motor assist for easy operation.
• Powder coat finish provides resistance to corrosion, chemicals, and scratches.
• Chrome plated pump core and piston rod reduces friction and provides long service life.
• Adjustable saddle with corner bracket and safety chain.


American Forge & Foundry�s Transmission Jacks provide the service technician the capability for “one-man” removal and installation of bulk transmissions, differentials, transfer cases, fuel tanks, and more. AFF offers telescoping, low profile, and high lift styles in both manual hydraulic and air assist.
