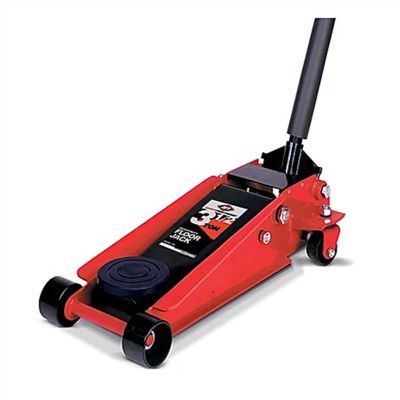

American Forge & Foundry AFF - Service Jack - 3.5 Ton Capacity - Double Pump - Short Chassis - 1 pc Handle - 4" Min H to 19.5" Max H - Heavy Duty

Features and Benefits:

• Color: Red/Black
• Capacity: 3.5 Ton
• Minimum Height: 4"
• Maximum Height: 19.5"
• Power Type: Hydraulic
• Operation Type: Manual
• Quick Lift Feature: Double Pumper - Dual Pump Pistons
• Working Air Motor Pressure: N/A
• Release Assembly: U-Joint
• Chassis Type: Short Chassis Service Jack
• Chassis Length (in.): 29"
• Chassis Width (in.): 15"
• Handle Type: Straight
• Handle Length (in.): 50"
• Handle Type (Pcs): 1
• Saddle Size: 5.1"
• Includes Saddle Pad: Yes
• Saddle Pad Material: Rubber
• Handle Bump Protector: Yes
• Rear Casters: Qty 2
• Front Wheels: Qty 2
• Hydraulic Return Spring: Yes
• Overload Bypass Valve: Yes
• Handle Return Spring: Yes
• Handle Docking Position: 90°
• Handle Locking Positions: N/A
• Service Parts Available: Yes
• Duty Level: Heavy Duty
• Weight (lb.): 119 Lbs.
• Warranty: 1 Year
• Certification: ASME/PASE 2019
• Lifts from 4" to 19-1/2". Rear mounted 2-3/4" swivel casters for ease of maneuverability.
• One piece 50-1/4" padded handle parks upright.
• Pinned steel saddle (1-1/8" stud) with rubber pad for added vehicle protection.
• Equipped with a double pump design to increase speed without compromising overall performance of the jack.
• Second volume pump assists in getting the saddle to load much quicker than most other single pump designs on the market today.


Designed with the professional service technician in mind, AFF service jacks are built to withstand the rigors of everyday use and are among the most durable in the industry today. Heavy gauge steel, UV powder coated paint, upgraded seals and overload protection are just some of the features that make AFF service jacks stand out in the shop.
