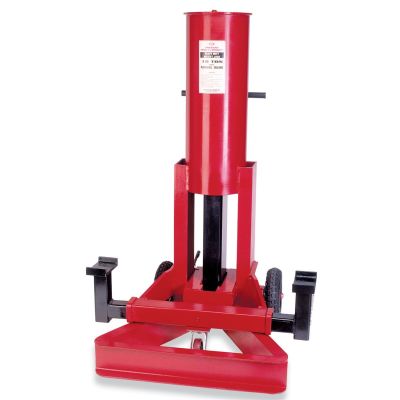

American Forge & Foundry AFF - End Lift - 10 Ton Capacity - Air Operated

Features and Benefits:

• Color: Red/Black
• Capacity: 10 Ton
• Product Type: Air Lift Jack
• Power Type: Air
• Operation: Air Valve
• Minimum Height: 12.4"
• Maximum Height: 49.6"
• Chassis Length (in.): 35.5"
• Chassis Width: 47.3"
• Reach (in.): 50.6
• Lift: 37.2"
• Saddle Diameter: 4" x 6"
• Saddle Spread (in.): 36" - 50"
• Handle Length (in.): 18.9"
• Working Air Pressure: 200 PSI
• Weight: 682 Lbs.
• Wheels: Qty 2 - 8" Pneumatic Wheels, Qty 1 - Front Swivel Caster
• Certification: ASME/PASE 2019
• Warranty: 1 Year
• Adapters Included: Qty2 - 4" x 6" Saddles
• Special Features: 3 Way Air Valve| Automatic Safety Lock
• The AFF Air End Lift is designed with an extra-wide stance to lift the entire front or rear of large trucks, buses, industrial, heavy-duty construction equipment, and large farm vehicles.
• 10-Ton capacity achieved at 200-PSI air supply.
• Three-way air valve for fine lifting and lowering control.
• 4" x 6" steel saddles adjust between 36" and 50" widths.
• Saddle arms reversible for low height loads.
• 13" Forward reach (distance from cylinder to saddles).
• Automatic mechanical safety lock engages at five lift heights from 17-1/2" to 50".
• Two air control valve fittings ‐ one for shop air supply and one for a Schrader valve.
• Front swivel caster and two pneumatic rear tires for easy maneuverability.


American Forge & Foundry features a wide range of specialty jacks for the trucking, agriculture, fleet, and military sectors. Each is designed for applications where extra capacity, added reach, or height may be required.
