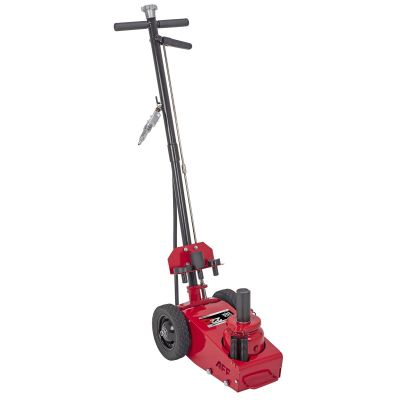

American Forge & Foundry AFF - Axle Jack - 22 Ton Capacity - Air/Hydraulic - Spring Return - w/ 3 pc Ext Kit & 2 pc Handle

Features and Benefits:

• Color: Red/Black
• Capacity: 22 Tons
• Product Type: Axle Jack
• Stages: 1
• Power Type: Hydraulic
• Operation Type: Air Assist
• Duty Level: Heavy Duty
• Minimum Height (in.): 8.25"
• Maximum Height without Extensions: 12.75"
• Maximum Height with Extensions: 16.75"
• Ram Lift (in.) - Stage 1: 4.75"
• Ram Lift (in.) - Stage 2: N/A
• Ram Lift (in.) - Stage 3: N/A
• Capacity (T) - Stage 1: 22 Tons
• Capacity (T) - Stage 2: N/A
• Capacity (T) - Stage 3: N/A
• Handle Length (in.): 42.7"
• Number of Handle Pieces: 2
• Handle Locking Positions: 90°/45°/180°
• Chassis Length (in.): 20.25"
• Chassis Width (in.): 12.7"
• Saddle Diameter: 2"
• Number of Extensions: 4
• Extension Sizes (in.): 3/4",1", 2 3/4", 4"
• Extension Screw: N/A
• Wheel Diameter (in.): 8"
• Working Air Pressure: 90-180 PSI
• Weight: 99 Lbs.
• Warranty: 1 Year
• Certification: ASME/PASE 2019
• Special Features: Dual Return Springs|High Speed Air Motor|Overload BypassAmerican Forge & Foundry�s Axle Jacks are engineered to withstand the extreme conditions of all heavy-duty applications including roadside service, fleet maintenance, agriculture, military sectors, and much more.
• Designed for heavy duty truck and trailer shop use, rail and bus work and roadside service calls.
• Includes 3 heat treated extensions (3/4”, 2-3/4”, and 4”) for a wide range of lifting options.
• Two Piece handle Included.
• High-speed air motor design advances ram to load faster, for quick and more efficient operation. Operates at 90-180 PSI.
• Narrow Chassis design fits easily between tandem wheels. Large, 8” diameter rubber wheels for easy maneuverability.
• Fully welded hydraulic pump and cylinder construction provide superior strength and leak prevention. Pump, ram, and cylinders are precision machined and inspected to ensure long service life and superior performance.
• Chrome plated ram offers additional rust resistance.
• Wiper seals protect hydraulic system from contaminates.
• Overload and bypass safety valves prevent the jack from being used beyond its rated capacity and ram over extension.


AFF 565F 22-ton axle jack features air assist operation and a self-retracting spring return. Its heavy- duty design is ideal for truck and trailer shops, rail and bus work, roadside service calls, and much more.
